GBS impellers are single-stage shaftless end suction pumps according to ISO 2858.
Our range also includes several models of pumps that have been developed according to operating conditions not covered by ISO 2858.

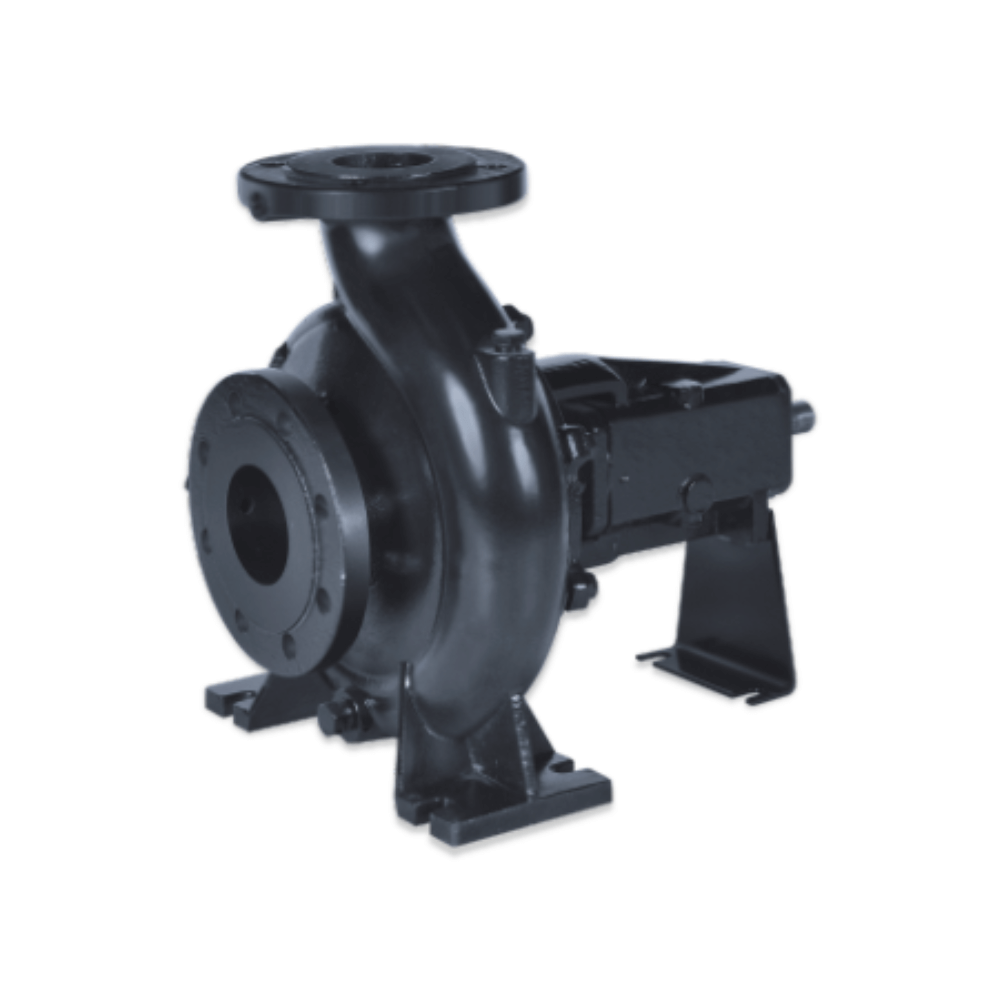

GBS80-250 Motorless General Impellers
Applications
– Water supply.
– Fire protection systems.
– Refrigeration and air conditioning systems.
– Industrial laundry and cleaning systems.
– Pressure boosting for high-rise buildings,
hotels and others.
– Boiler feed system and condensate transfer.
– Irrigation systems for fields including sprinkler
and drip irrigation systems.
