مضخة طرد مركزية راسية CRN3-قروندفوس

Al-Ala Store for Water Solutions / المتجر / Pumps / مضخة طرد مركزية راسية CRN3-قروندفوس

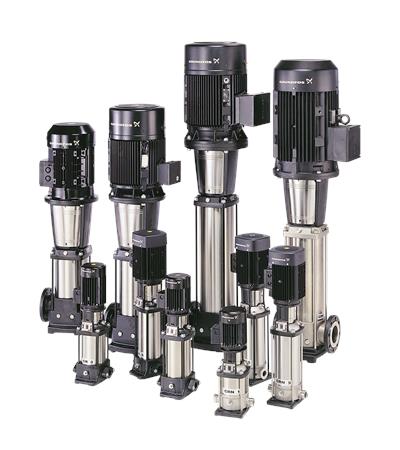

مضخة ماء راسية مضخة مياه راسية مضخات مياه ماتور مياه مضخة راسية
مضخة قروندفوس مضخات جراند فوس قراندفوس
مضخة قروندفوس مضخات جراند فوس قراندفوس
مضخة قروندفوس مضخات جراند فوس قراندفوس

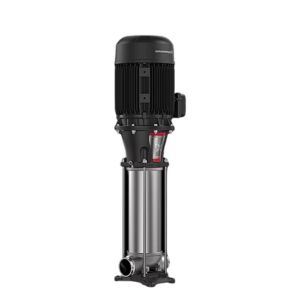

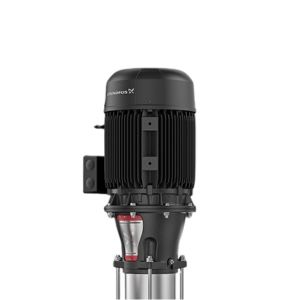

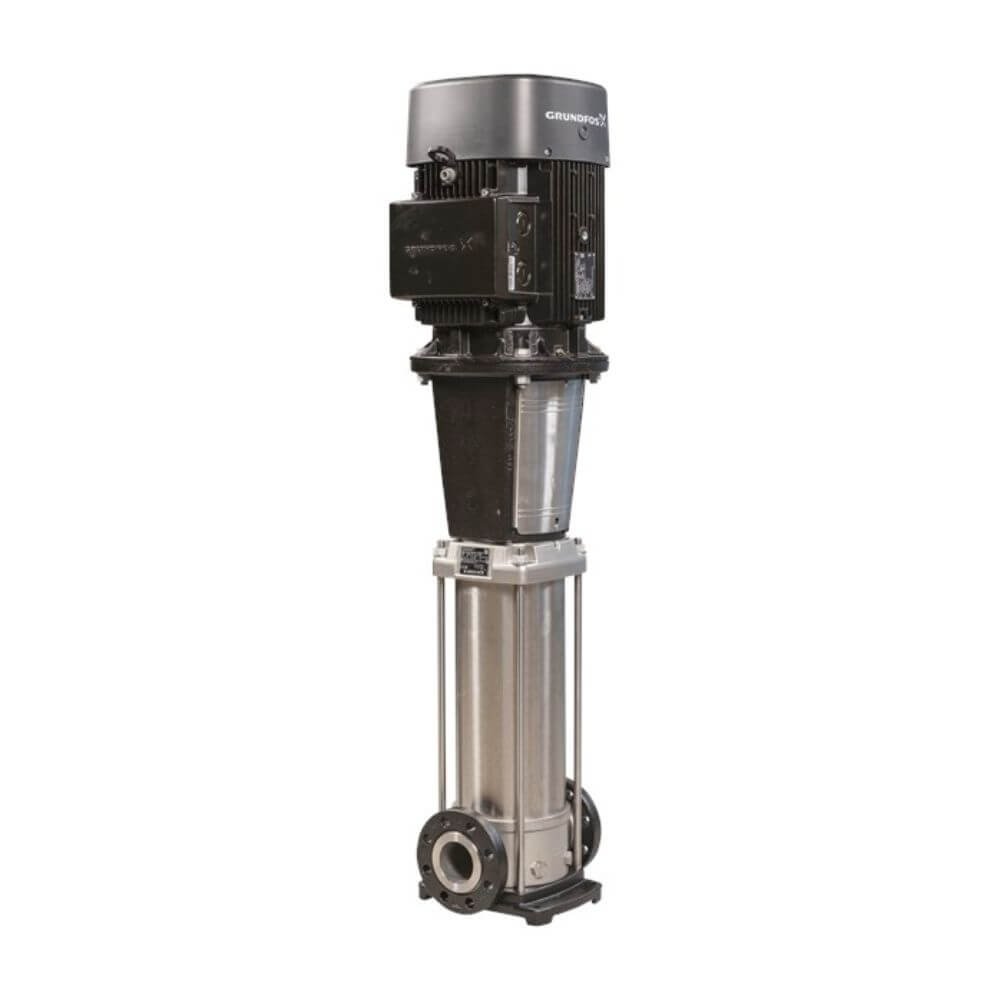

مضخة طرد مركزية راسية CRN3-قروندفوس

احصل على عرض سعر

المواصفات

  • الطراز: CRN_3-23_APAVHQBV
  • القدرة:4 حصان
  • المرحلة: 3 فاز
  • سرعة المضخة: 3514rpm
  • أقصى ضغط التشغيل: 16 بار
  • حجم المدخل: 2 inch
  • الجهد: 3 x 230-277D/400-480YV فولت
  • التردد: 60هرتز
  • المروحة: استانلس ستيل AISI 316
Categories: ,

مضخة طرد مركزي عمودية متعددة المراحل مع منفذ دخول وخروج على نفس المستوى (خطي). المواد التي تلامس السائل في المضخة مصنوعة من الفولاذ المقاوم للصدأ عالي الجودة. يضمن ختم عمود الخرطوشة موثوقية عالية وآمنة، وسهولة الوصول، والخدمة. يتم نقل الطاقة من خلال وصلة تقسيم صلبة. يتم توصيل الأنابيب من خلال وصلات PJE (Victaulic®). المضخة مزودة بمحرك غير متزامن ثلاثي الطور ومبرد بالمروحة.

الاستخدامات

  • تطبيقات التجارة
  • تطبيقات الزراعية
  • تطبيقات الصناعة
  • تطبيقات البنية التحتية
  • تطبيقات الحريق



القدرة

4 حصان

Brand

Grundfos
