غطاس تصريف DL100 ايبارا

Al-Ala Store for Water Solutions / المتجر / Pumps / غطاس تصريف DL100 ايبارا
غطاس تصريف ستانلس ستيل

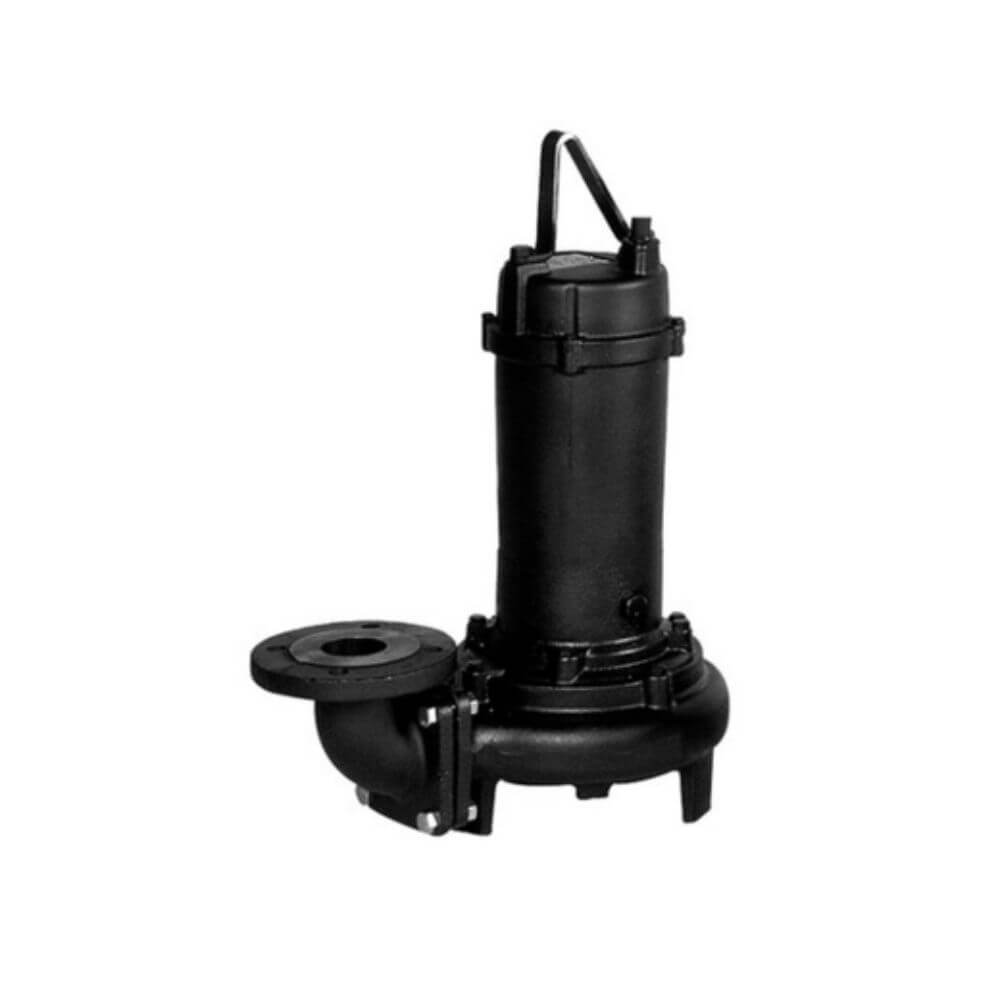

غطاس تصريف DL100 ايبارا

SKU: N/A Categories: ,

غطاس تصريف المياه مصنوع من الحديد مع دافعة مفتوحة مزدوجة القناة ودافع شبه مفتوح مضادة للانسداد، لتوفير أقصى قدر من الكفاءة.

توفر الغاطس الكهربائي DL نطاقًا واسعًا من القوى تصل إلى 45 كيلووات وأقطار تفريغ مختلفة.

المميزات

إمكانية استخدامها في المنشآت الثابتة والمتنقلة
المكره المفتوح ثنائي القناة
فتح المكره قناة واحدة مع القاطع

القدرة

بقدرة 7.5 حصان (100 DL 65.5 ), بقدرة 10 حصان (100 DLB 67.5), بقدرة 15 حصان (100 DLB 611)

Brand

Ibarra

Related Products

  • مضخات غير ذاتية التحضير

    GBI37L 10 HP Spanish General Impeller

    احصل على عرض سعر

    Features

    • Compact design
    • Simple and easy installation
    • User-friendly operation
    • Low noise level
    • Reliable and robust construction
    • Reliable water supply
    • Built-in motor protection, dry run protection
    • Rear intake design that simplifies inspection and maintenance
    • CE-certified teacher
    • Spanish General Defence Catalogue
  • مضخات غير ذاتية التحضير

    Spanish General Impeller 10 HP Gcc50-125L1A

    احصل على عرض سعر

    Features

    • These are non-self priming, horizontal, single stage, centrifugal pumps with helical casing with axial intake and radial outlet
    • The performance of the pumps complies with ISO 2858.
    • Standard flanges for intake and discharge ends are ANSI 125 and ANSI 250 according to ASME B16.1. DIN EN 1092-2 with PN 16 ratings and DIN EN 1092-2 with PN 25 ratings can also be offered on request
    • Pumps have a discharge range of 35 – 2790 US gallons per minute and a head range of 15 – 470 feet
    • Engine ratings from 1 to 200bhp
    • The pumps come as a single block with a TEFC closed cage induction motor with main dimensions that comply with NEMA MG 1-2006 standards.
    • Pumps with a mechanical seal for the axis are a standard supply
    • The pump rotors are dynamically balanced to ISO 1940 grade 6.3.
    • These pumps are available with high-efficiency motors that comply with the efficiency requirements of the US Energy Policy Act of 1992 (EPAct) and Natural Resources Canada (NRCan) standards
    • The efficiency will meet or exceed the full load efficiency of TEFC motors according to Table 12-11 of the NEMA MG 1-2006 standards.
    • They can also be fitted with TEFC motors with excellent efficiency according to Table 12-12 of NEMA MG 1-2006 on request
    • The pumps feature a back-pull design. This feature helps the user to remove the motor, bearing carrier, and fan for service without disturbing the screw casing, intake and delivery pipes (see figure below)
    • We can also supply pumps with IEC standard motors with an aluminium frame size from 71 to 160 and a cast iron frame size from 180 to 315
    • Spanish General Impeller Catalogue



  • غطاس صرف صحي صغير

    1.5 HP R150 Drain Plunger – Barona

    1.380,00 ر.س Value Added Inclusive

    Specifications

    • Maximum height: 16 metres
    • Capacity: 1.5 HP
    • Maximum flow: 24 metres (cubic metres per hour)
    • Propeller material: Cast iron
    • Water outlet: 2
    • Electricity: 220
    • Frequency: 60 HZ
    • Degree of protection: 68 IP
  • غطاس صرف صحي صغير

    1.8 HP 180GR plunger with Italian Barona chopper

    2.530,00 ر.س Value Added Inclusive

    Specifications

    • Capacity: 1.8 PH
    • Voltage: Hz 60, V. 220
    • Maximum liquid temperature 35°C with partial immersion of the pump
    • Maximum immersion depth 7 m with 10 m power cord
    • Rotation rate: 3400 rpm
    • Class F poles
    • Body AISI 304. Shaft AISI 420
